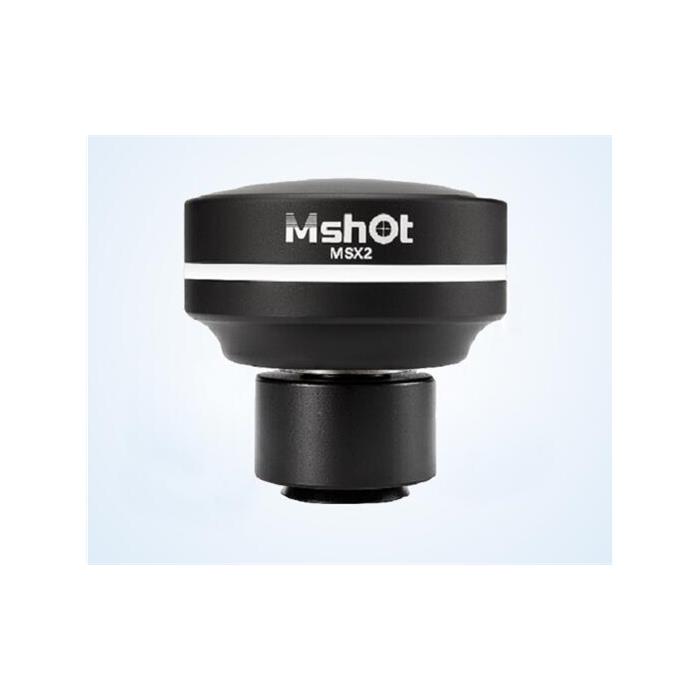

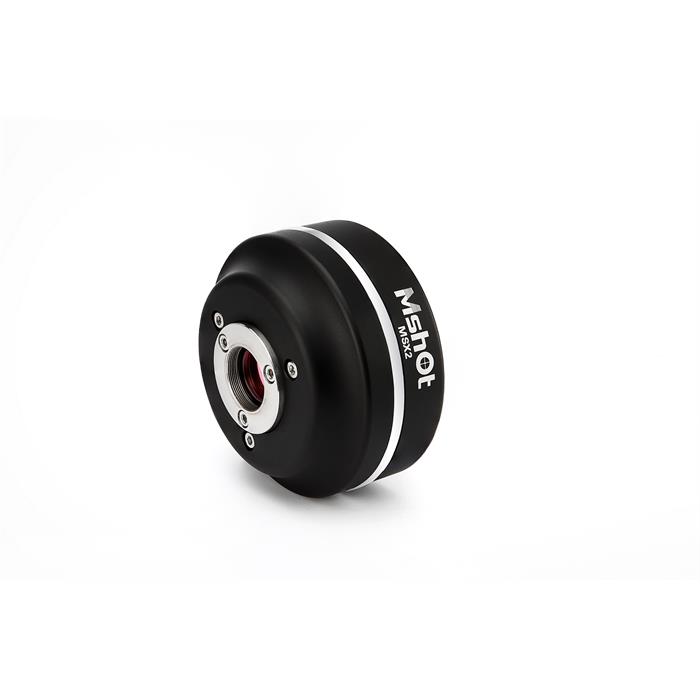

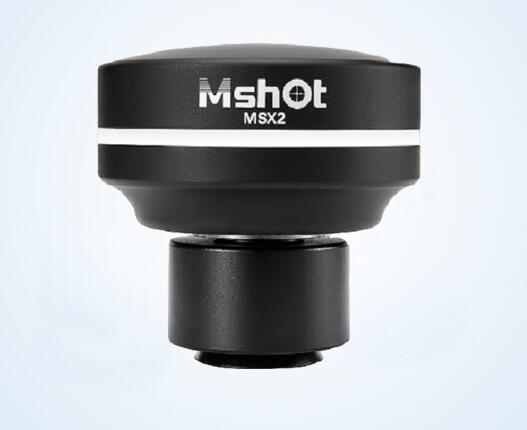

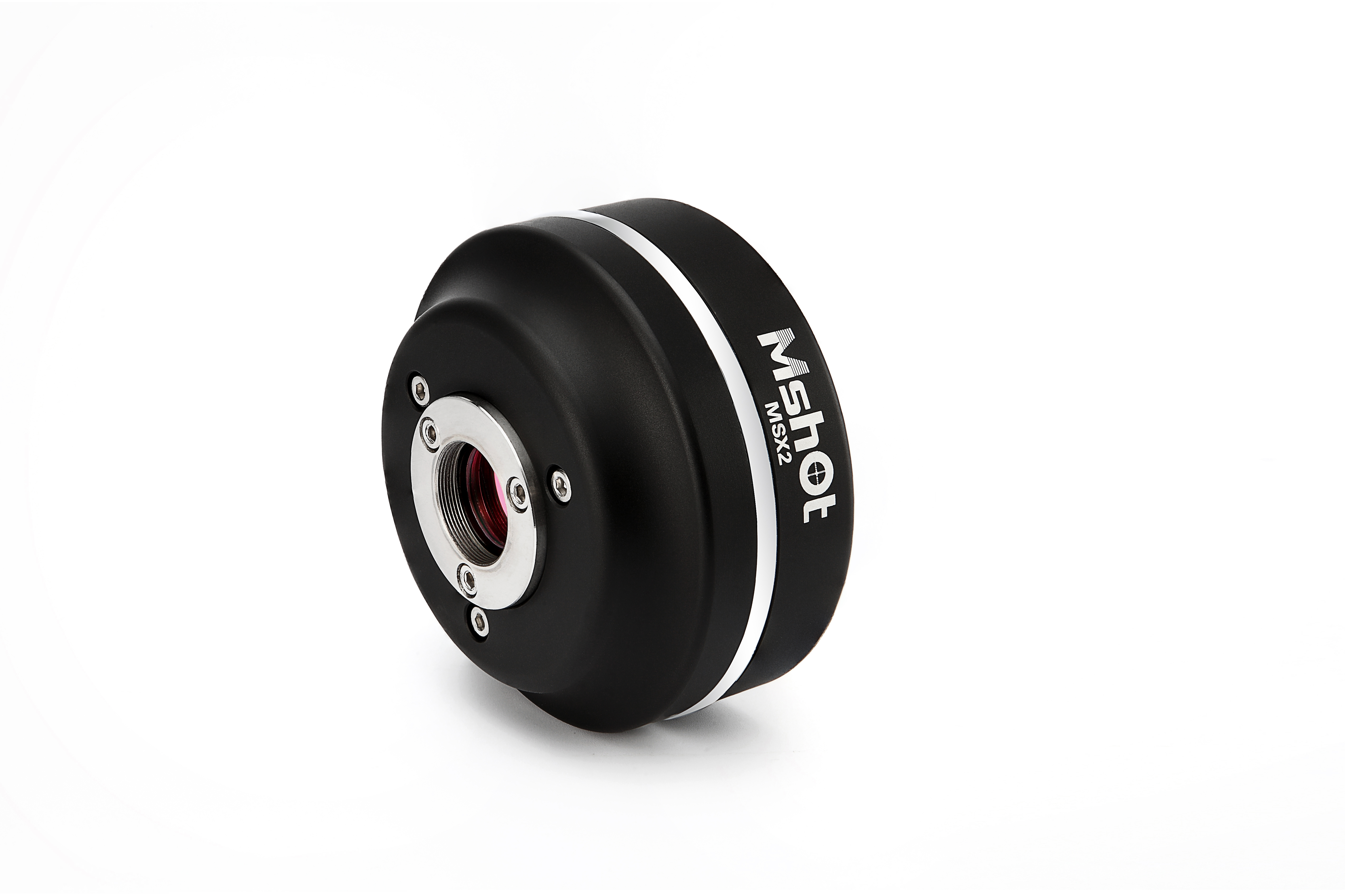

MSX2-H 12MP Microscope sCmos Image Eyepieces

Item

MSX2

MSX2-C

Effective pixels

12MP

Sensor size

1"

Pixels Size

3.1μm × 3.1μm

Frame rate

 Resolution

Frame

4088 × 3072

15 FPS

3840 × 2160

15 FPS

2040 × 1536(SUM2)

57 FPS

1920 × 1080(SUM2)

57 FPS

1360 × 1024(SUM3)

15 FPS

Any size ROI

Scanning Mode

Progressive scanning / continuous output

Shutter

Electronic shutter

Exposure time

41μs ‒ 10s

Effective gain

1 ‒ 32x

Spectral Response

380 ‒ 1100nm

A/D conversion

12bit

Image Cache

64Mb

Trigger mode

Software trigger

Cooling function

No

Semiconductor refrigeration mode，Below ambient temperature 15°C

Exposure

Manual/ AUTO/area exposure

White balance

Manual/One push push/Area

Image format

TIF、BMP、JPG、RAW

Software Interface

DirectShow / TWAIN

Software development

Support SDK

Operating system

Windows XP 32bit；Windows 7/8/10 32/64bit；Linux

Data interface

USB3.0 ，5Gb/s

Camera interface

C-mount adapter

Power supply

USB 5V

Operating environment

Temp:0～40℃；humidity:10%～90%RH（No condensation）

Temp：0‒50℃；Humidity：10%‒90%RH（No condensation）

External dimension

108.5mm × 106.5mm × 62.5mm
